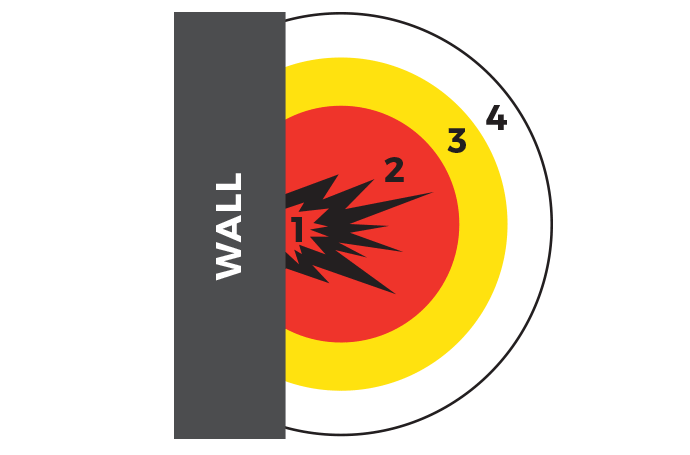

To Label or Not To Label | Powerstudies.com What Equipment Needs Arc Flash Labels? You've ordered an arc flash study for your facility. You know that arc flash labels are to warn electrical workers and ... Arc Flash Label Requirements To Comply With OSHA Arc Flash Label Requirements 1. Incident energy Incident energy, as indicated on the arc flash label, is the level of thermal energy that one would feel at the working distance in the event of an arc flash. This energy is measured in calories per centimeter squared. Commonly noted as cal/cm2. 2. Arc Flash Boundary

Additional Guidance: ANSI Z535.4 and Arc Flash Labels A commonly used message for arc flash labels is "Arc Flash and Shock Hazard—Appropriate PPE Required." The message should be safety black lettering on a safety white background. ANSI Z535.4 also permits safety white lettering on a safety black background, but it is not common for arc flash labels.

Arc flash warning label requirements

Arc Flash Safety - Health Safety & Environment At minimum, the safety program needs to be audited at intervals not to exceed 3 years and arc flash risk assessment shall be periodically reviewed at intervals not to exceed 5 years. The labeling requirements for equipment installed prior to the 2002 NEC Provision are not specifically stated. NEC Arc Flash Label Requirements: What's new for 2014? Arc flash warning labels may now be field or factory applied. Field-applied marking shall meet the requirements of new the new 110.21 (B) subsection, which contains general requirements for field marking as discussed above. Many manufacturers are marking equipment with appropriate arc flash warning labels, so there is no need for field marking. Arc Flash Label Requirements - Creative Safety Supply Arc Flash Label Format Label format should conform to the ANSI Z535.4 Products Safety Signs and Labels standard requirements, which include the WARNING or DANGER signal word and corresponding colors, symbols, and text. Generally, WARNING (with an orange background) is used for arc ash labels to indicate a serious hazard exists.

Arc flash warning label requirements. Your arc flash labels must comply with NFPA 70E standard 2015 Once an arc flash risk assessment has been conducted, in which the arc flash boundary, the incident energy at the working distance and the personal protective equipment required has been determined, Article 130.5 (C) in the 2015 edition of NFPA 70E further dictates that the label must contain these important elements: 1. Nominal system voltage. Arc Flash Labeling Requirements | Comply with 2021 NFPA 70E Danger or Warning header. A common guideline is to use the "Danger" header when the voltage is over 600 or when the incident energy is over 40 cal/cm2. If it is less than this threshold, an orange "Warning" header is typically used. "Incident Energy at" is the corresponding working distance. With that context, it's easy to see why arc flash warning labels are important for worker safety. Arc Flash Label Details. Arc flash labels of some kind have been required by NFPA 70E for many years. In the new edition of NFPA 70E, the labeling requirements have been moved slightly; they now appear in Sec. 130.5(H). OSHA Arc Flash Requirements & Safety: What You Need to Know - Insure ... OSHA standard 29 CFR 1910.132 (d) (1) states: "The employer shall assess the workplace to determine if hazards are present, or are likely to be present, which necessitate the use of personal protective equipment (PPE).". It is your responsibility to conduct an arc flash hazard analysis to identify the needed PPE as the employer.

In Compliance NFPA 70, May June 2019 - NFPA Journal May 1, 2019 — For starters, arc flash hazard warning labels are required by 110.16. For most equipment, this is simply a label warning qualified persons ... Arc Flash Label Best Practices - Occupational Health & Safety Arc Flash Labels are a sticky issue. Since before the NEC requirement for arc flash and shock warning labels in 2002, some companies have included some warning labels about shock or electrical... Understand Arc Flash Codes, Standards, and Regulations One of the requirements of Article 130.5 is to provide arc-flash labels for electrical equipment indicating system voltage, arc-flash boundary, and information to determine the minimum arc rating required for the PPE. PDF Understanding "Arc Flash" - Occupational Safety and Health ... Once the evaluation is complete an Arc Flash Hazard warning label must be affixed to the equipment and readily accessible to employees who may work on the energized equipment. This material was produced under grant number SH-16615-07-60-F-12 from the Occupational Safety and Health Administration, U.S.

Arc Flash Warning Labels & Stickers | BRADY - BradyID.com Arc Flash labels indicate the equipment-specific hazard information. These electrical safety labels meet all current OSHA, NFPA, NEC and NFPA70E requirements. Learn more about Arc Flash Labeling Requirements and how the apprropriate labels and arc flash label printer will help you comply with the NFPA 70E standard. Can't find the right label? Are Arc Flash Labels Required? - Leaf Electrical Safety Are arc flash labels required? The simple answer is YES. You absolutely need to warn people of the potential that an arc flash hazard may exist inside any of the electrical equipment where it's possible. The thing you really need to consider is how much information are you going to put on your label? Read the Signs: A Brief Look at Arc Flash Hazard Labels The next section of an arc flash label will document the hazard itself and appropriate measures of action or avoidance. Most commonly, the message used on an arc flash labels is "Arc Flash and Shock Hazard—Appropriate PPE Required." The message should be safety black lettering on a safety white background. Arc Flash Labels Explained - Electricity Forum Arc Flash Labels are required by NFPA 70e in the United States and CSA Z462 in Canada. NFPA 70e identifies the minimum safety requirements that must be ...

BRADY Arc Flash Protection Label - 2XY16|101952 - Grainger

PDF New OSHA regulations for arc flash safety - Eaton • Arc flash studies • Arc flash training • Arc flash limiter conversion • Arc flash relay • Remote and motorized breaker racking solutions • Compliant arc flash labels • Arcflash Reduction Maintenance SystemE breaker upgrades • Arc-resistant low- and medium-voltage switchgear • FlashGardE motor control center (MCC)

NFPA 70E 2015 Changes | Arc Flash Requirements | BRADY

Arc Flash Labeling | Graphic Products This guide will help you quickly understand the key aspects of arc flash labeling. Covers OSHA regulations, NEC requirements, and NFPA 70E practices for arc flash labels Explains how these labels fit into the Hierarchy of Controls for electrical hazards Describes the key elements of compliant arc flash labels, and how to create them

Nfpa 70e Arc Flash Label - Ythoreccio

ANSI Z535.4 arc flash label requirements | Electric Arc A commonly used message for arc flash labels is "Arc Flash and Shock Hazard—Appropriate PPE Required." The message should be safety black lettering on a safety white background. ANSI Z535.4 also permits safety white lettering on a safety black background, but it is not common for arc flash labels.

Nfpa 70e Arc Flash Label - 1stadenium

ARC FLASH LABELING FOR 120V CONTROL PANELS - Mike Holt's Forum The owner is wanting to provide arc flash labels out to almost every panel in the facility and he even included 208V single phase and 120V control panels in his list. I know that table 130.7 (C) (15) (A) (b) in the NFPA-70E shows that single phase panels, 240V and below should be labeled as PPE category 1, but I'm curious if it's still valid to ...

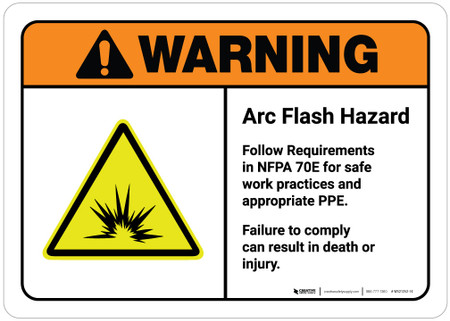

Warning: Arc Flash Hazard - Follow NFPA 70E Requirements - Failure Can ...
